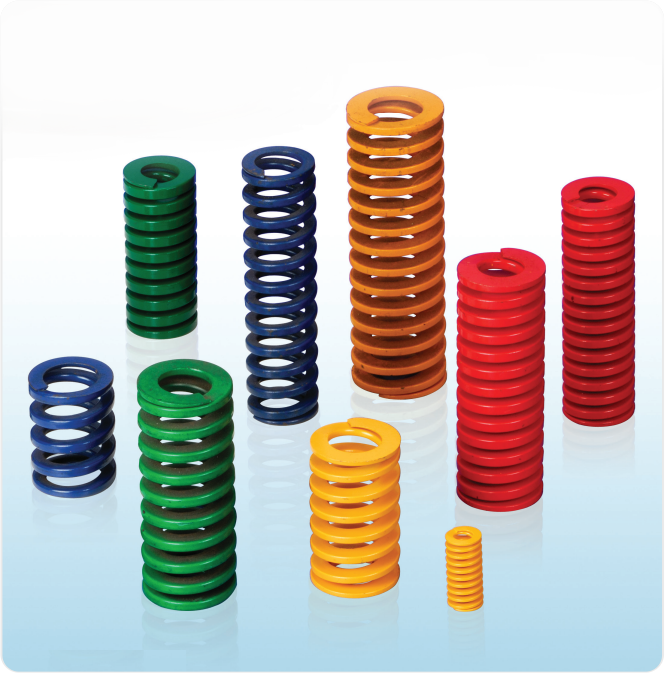

JIS Die Spring (Metric)
Features：
Die springs are industry-standard springs designed to support high loads in limited space. These are often used in precision machinery such as die punching, die casting, or die injection. HJ Spring stocks springs made to US, German and Japanese standards supporting all ranges of light to super-heavy loads.
現貨供應, 全台48小時內到貨.特殊規格歡迎客製開模
JIS Die Spring Spec Sheet
(JIS B 5012)
Made in Taiwan

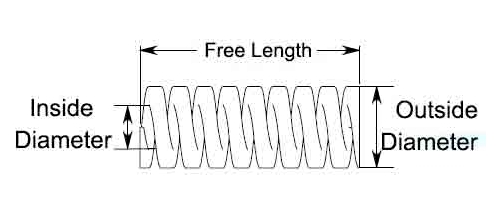

Engineering schematic
Allowable Tolerances
| （OD） | （ID） | Free length | load | |
|---|---|---|---|---|
| Less than 50mm | More than 50mm | |||
| +0mm -0.7mm |
+0.7mm -0.1mm |
±0.5mm | ±1% | ±10% |
How to use die springs?
- Calculate the maximum stroke you need.
- Preload each spring before you install, or it may cause early spring failure. As a general rule, preload 3~5% of total length to get good performance.
- Each spring needs to match the corresponding spring pockets and guide rods.
- Over time, punch tools are ground to maintain effectiveness. When this happens, the spring increases its preload. Don't forget to grind gaskets to maintain the same spring travel.
The relationship between the usage frequency and compression ratio
(Deflection in % Free Length)
| Working Time Description |
1 million (%of free length) |
0.5 million (%of free length) |
0.3 million (%of free length) |
Max. Deflection (%of free length) |
| Lightest Load (yellow) | 50% | 45% | 40% | Approx. 58% |

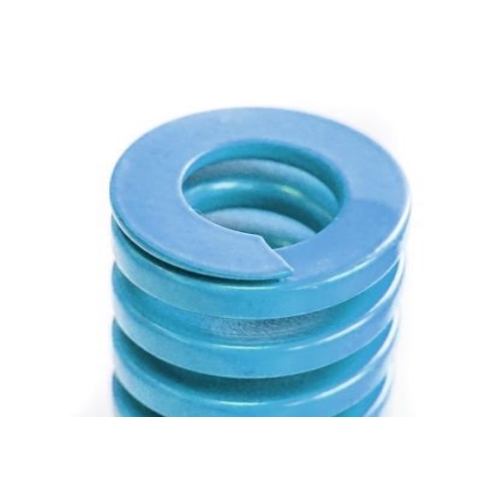

| Light Load(blue) | 40% | 36% | 32% | Approx. 48% |

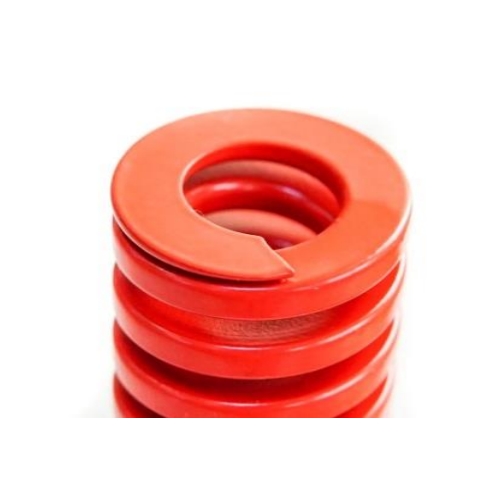

| Medium Load(red) | 32% | 28.8% | 25.6% | Approx. 38% |
| Heavy Load(green) | 24% | 21.6% | 19.2% | Approx. 28% |

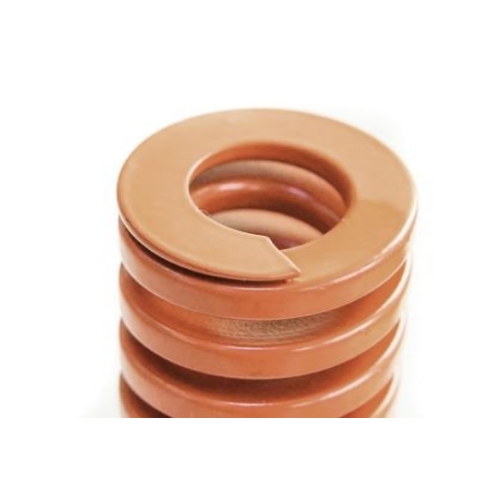

| Super Load(brown) | 20% | 18% | 16% | Approx. 24% |
